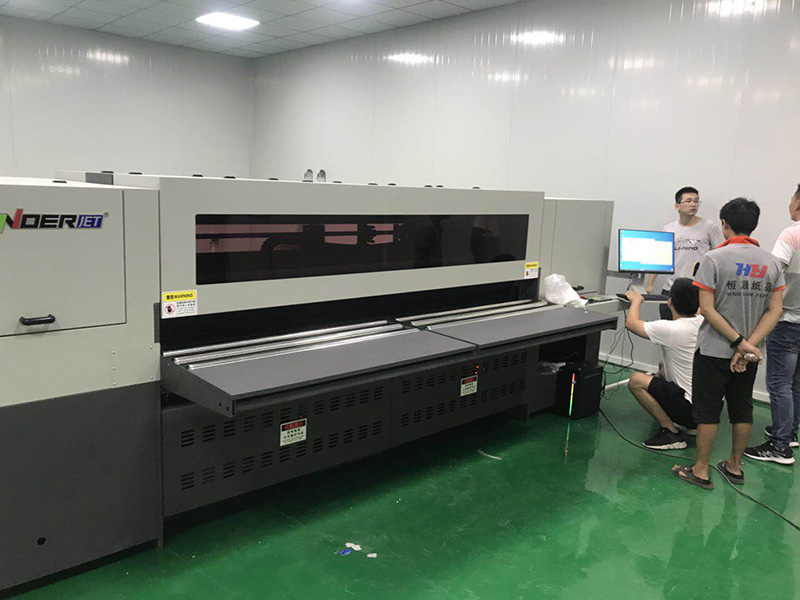

WD250-8A+ upgraded Corrugated carton digital scanning Printing Machine fit Small Quantity Orders
Description
1.WD250 series digital printing machine, without plate, without cleaning, using CMYK four source color printing mode, convenient, environmental protection with low carbon.
2. The Printhead temperature system, can effectively overcome the various low temperature environment.
3. Using stronger servo motor with high precision reducer, higher precision, faster speed, more stable performance.
4. Use 6 grade super high precision gear and high precision cylindrical grinding power roller, drive more accurately.
5. Strong rail beam, Mute guide rail,Printing flat error less than 0.2mm, makes the print more stable and higher accuracy.
6. New printhead cleaning mode, automatic cleaning,saving ink, printing more frequency.
7.Print on-demand without creating waste ink,thus achieving lower consumption and better environmental protection.
8. Rapid for the orders change. Lower printing cost to run from 1+ sheet. Instant service to the customer for rush orders.
Applications:
Digital printing on corrugated carton board,honey-board,wooden board,etc.
Included marks,NO.,advertising pictures
Specifications:
| Article NO. | WD250-8A+ |
| Printhead | Mirco-piezo hightest printhead |
| Printhead quantity | 8 pieces |
| Ink type | Special water base dye ink |
| Color model | Cyan,Magenta,Yellow,Black |
| Medium distance | 2mm-4mm |
| Printing resolution | ≥600*180 dpi |
| Printing efficiency | Max 700㎡/hour |
| Printing format | Below 2500mm*1350mm under auto feeding |
| Drying speed | Liner-board can be dry once print out |
| Working environment | 20ºC-25ºC Indoor，Humidity 50%-70% |
| Ink supply | Automatic ink supply |
| Feeding mode | Automatic feeding |
| Material thickness | 2mm-35mm（max can be ordered to 50mm,if between 1.2mm and 2mm may need manual feeding) |
| Operate system | Professional RIP system,professional printing system,Windows 7 system with 32 bit operating system or above |
| Power supply | About 8.5 KW power：AC380±10%，50-60HZ |
| Machine size | L*W*H：2912*4594*1622(mm) |
| Weight | 3500KGS |
Competitive Advantage:
Printing way: scanning inkjet
High quality digital inkjet printing machine for corrugated carton
Your best selection for small and personalized orders
4colors,CMYK color mode
Printing speed up to 700㎡/h
Environmental,energy saving, high efficiency and stable operation
Water-based dye ink,Environmental, automatic cleaning system
General Product Information:
| Place of Origin: | China |
| Brand Name: | WONDER |
| Certification: | CE |
| Model Number: | WD250-8A+ |
Commercial terms of products:
| Minimum Order Quantity: | 1 UNIT |
| Price: | OPTION |
| Packaging Details: | WOODEN CASE |
| Delivery Time: | 1 MONTH |
| Payment Terms: | EX-WORK |
| Supply Ability: | 100 |
