WD250-32A++ Heavy-duty Multi Pass digital printer (Water-based ink)

Short Description:

WD250++ series Muti Pass scanning high quality digital presses, inkjet printing, printing width max 2500mm, length no limit, equipped with 32 printheads, printing basic resolution beyond 1200dpi. High speed printing, maximum speed up to 1400m2/h, production efficiency around 1~1200pcs/h, cost-effective,your best selection for small and personalized orders.

Product Detail

Product Tags


Standard working environment

  Model WD250-8A+ WD250-16A++ WD250-16A+ WD250-32A++
Printing configuration Printead Industrial mirco-piezo printhead
  Printead qty 8 16 16 32
  Resolution ≥360*600dpi ≥360*1200dpi ≥360*600dpi ≥360*1200dpi
  Efficiency Max 700㎡/hour Max 1400㎡/hour
  Printing width 2500mm
  Ink type Special water-based dye ink, special water-based pigment ink
  Ink color Sandard:Cyan,Magenta,Yellow,Black
  Ink supply Automatic ink supply
  Operation system Professional RIP system,professional printing system,
Win10/11 system with 64 bit operating system or above
Printing material Application All kinds of corrugated cardboard (yellow and white cattle board, honeycomb board, etc.), available to print semi-coated board with dryer
  Max width 2500mm
  Min width 350mm 420mm 600mm 600mm
  Max length 2200mm under auto feeding,no limit under manual feeding(Cardboard stack weight affects autofeed length)
  Min length 450mm 420mm 350mm 350mm
  Thickness 1.5mm-35mm(max can be ordered to 50mm)
  Feeding system Automatic leading edge feeding, default presssure  roller platform Automatic leading edge feeding, suction platform
Working environment Workplace Requirements Install compartment
  Temperature 20℃-25℃
  Humidity 50%-70%
  Power supply AC380±10%,50-60HZ
  Air supply 4kg-8kg
  Power About 7.5KW About 14KW About 18KW
Others Machine size 2912*4594*1622(mm) 3751*5294*1622(mm) 4850*6100*1751(mm)
  Machine weight 3000KGS 5500KGS
  Optional Variable data,ERP docking port
  Voltage stabilizer The voltage stabilizer needs to be self-configured,request 50KW
Features Scatter King Use environmental ink,
especially suitable for personalized customized packaging of small batches and scattered orders
Advantage WD250 series Muti Pass scanning high quality digital printer,inkjet printing, printing width max 2500mm, length no limit,basic printing resolution 600dpi-1200dpi, printing speed more fast, up to 700㎡/h-1400㎡/h, production efficiency around 1-1200 PCS/hour, cost-effective, your best selection for small and personalized orders.
Features of digital printer (common to all printer) Revolutionary in world
Inkjet technology
Print on demand
No limit with quantity
Variable data
ERP docking port
Quick-done ability
Computer color correction
Simple process
Easy operation
Labor saving
No composition change
No machine cleaning
Low-carbon & environment

Features of digital printer (common to all printer)

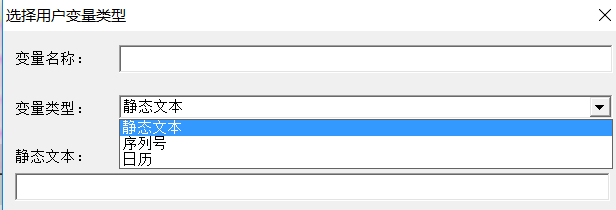

Variable data

Text variable

Sequence: It can be changed according to user definition, and the set sequence can also be used for variable barcode
Date: Print date data and support custom changes, the set date can also be used for variable barcodes
Text: The text data entered by the user is printed, and the text is generally only used when the mode is text data

Bar code variable

The current mainstream barcode types can be applied

QR code variable

Among the dozens of 2D barcodes at present, the commonly used code systems are: PDF417 2D barcode, Datamatrix 2D barcode, Maxcode 2D barcode. QR Code. Code 49, Code 16K, Code one., etc. In addition to these common two In addition to dimensional barcodes, there are also Vericode barcodes, CP barcodes, CodablockF barcodes, Tianzi barcodes, UItracode barcodes, and Aztec barcodes.

Code package variable

Including: text, barcode, QR code can realize multiple variables on one carton

ca (1)
ca (2)
ca (3)
ca (4)

ERP docking port

Help carton factory intelligent production management

ca (5)

Queue printing

One-click upload of multi-task orders, easy to achieve continuous printing without downtime

ca (6)

Ink Cost Statistics

Real-time display of computer software, easy calculation of order cost

ca (7)
